Camera Installation
This chapter provides information and instructions for installing the Cisco Video Surveillance 6020 IP Camera, and includes the following topics:
•
Installation Guidelines
•Warnings Before Installation
•IP Photographic camera Installation
Installation Guidelines
This section describes how to install the IP camera. Before installing, review these guidelines:
•The IP camera requires a network cable and a connection to a standard x/100BaseT router or switch. To ability the IP camera with Power over Ethernet (PoE), a switch must be 802.3af compliant.
•If y'all are using the IP camera on a network connection that does not provide PoE, you lot must use a Cisco 12 VDC ability adapter (Cisco part number CIVS-PWRPAC-12V) or a third-party 24 VAC ability adapter.
•If you are using an external speaker, microphone, input device, output device, or pan/tilt control device, you must configure additional settings after installing and performing the initial set up upwardly of the IP camera before the external device tin can fully operate. For detailed information most these settings, run into the Cisco Video Surveillance 6000 Series IP Photographic camera Configuration Guide.
•If you do non connect an external device (speaker, microphone, input, output, or pan/tilt command) when you lot perform the following installation procedure, y'all can install any of these devices later.
Warnings Before Installation
| • Contact your distributor in the event of this happening. | • Contact your distributor in the event of this happening. |
| •  | •  |
| •  | •  |
| •  | •  |
| •  | •  |
| •  |
Annotation If yous use the IP camera outdoors, place the camera and the power supply in a suitable NEMA enclosure.
Inline power circuits provide current through the advice cable. Use the Cisco provided cable or a minimum 24AWG communication cable. Note The power adapter that you use with the IP camera must provide power that is inside +/-10% of the required power.
Note The equipment is to be connected to a Listed class 2, limited power source.
IP Camera Installation
Install the 6020 IP photographic camera using one of the following procedures:
•Mounting the IP Photographic camera Directly to a Surface
•Mounting the IP Photographic camera Flush with a Surface
•Mounting the IP photographic camera with a Vandal Resistant Enclosure
Mounting the IP Camera Straight to a Surface
To directly mountain the 6020 IP camera to a surface, complete the following steps:
Procedure
Step ane Adhere the included alignment sticker to the ceiling or wall.
Step 2 Using the circle marks on the sticker, drill 2 airplane pilot holes symmetrically on each side into the ceiling or wall. And then hammer the included wall anchors into the holes.
Footstep iii Secure the IP camera to the ceiling or wall with the included screws.
Step 4 Connect an STP (shielded twisted pair) Category 5 or higher network cable to the LAN port on the back of the camera. Connect the other finish of the network cable to a ten/100/BaseT router or switch.
If your network provides PoE, the IP photographic camera powers on.
Step five (Optional) Connect the following cables to the GPIO last block:
•External power cablevision if Power over Ethernet (PoE) is not available.
•I/O cables for external input or out put devices, such as sensors or alarms.
The GPIO last block pin locations and descriptions are every bit follows:
| | | |
| i | 12 VDC- | |
| 2 | 12 VDC+ | |
| 3 | 24 VAC | |
| 4 | 24 VAC | |
| v | DI- | |
| 6 | DI+ | |
| 7 | Practise- | |
| 8 | DO+ |
Step 6 (Optional) Utilise a mini cable with BNC connector to temporarily adhere an NTSC or PAL compliant analog video display device to the analog video out port on the IP photographic camera.
Notation The mini cable with BNC adapter is included in the sound/video cables accessory kit, which y'all tin can buy from Cisco (Cisco role number CIVS-AVCABLE).
Analog video is enabled past default to allow you to suit the camera field of view during installation. However, information technology is non supported as a normal camera feed and is automatically disabled when any of the following camera settings are fabricated:
•The main video stream frame charge per unit must be set college than 15 fps.
•The secondary video stream must is enabled.
Note We recommend that y'all disable analog video subsequently installation. To disable analog video, run into the Cisco Video Surveillance 6000 Serial IP Camera Configuration Guide.
Pace vii Remove the black cover.

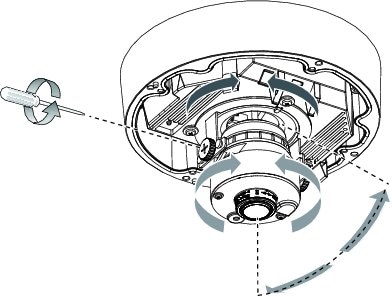

Pace 8 While viewing video from the IP camera, perform the following steps to conform the 3-axis field of view:
a. Grip the two tilt aligning screws and pan the IP photographic camera left or right.
b. Loosen the 2 thumb screws, tilt the IP photographic camera, so tighten the thumb screws.
c. Rotate the IP camera to adjust the epitome horizontal orientation.
Stride 9 Install the blackness encompass.
Step 10 Attach the dome encompass to the IP camera base by adjustment it with the mounting holes.
Footstep 11 Utilize the included screwdriver to tighten the 4 dome cover screws to secure the dome cover to the IP photographic camera. Brand certain all parts of the IP photographic camera are securely installed.
What to practise next
Consummate the following procedures:
•Afterwards you lot install the IP camera, follow the instructions in the "Performing the Initial Setup of the IP Camera" section to access the IP camera through your network.
•After completing the initial setup, utilize the IP photographic camera user interface to adjust the focal length and zoom factor. For more data, see the "Adjusting the IP Photographic camera Focus and Zoom" section.
Mounting the IP Camera Flush with a Surface
To mountain the 6020 IP camera flush with a surface, complete the following steps:
Procedure

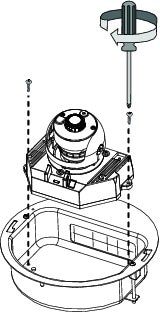

Step 1 Secure the IP photographic camera inside the camera housing using the ii included screws.
Step 2 Remove the ceiling tile from the location at which you want to mountain the IP dome and cutting a 7-3/iv inch (19.68 cm) bore pigsty in the center of the tile.
Step 3 Place the camera housing through the hole that you lot cut in the ceiling tile.
Step 4 (Optional) Place a ceiling tile mount over the camera housing.
Orient the ceiling tile mount and so that it is flush with the back surface of the ceiling tile.

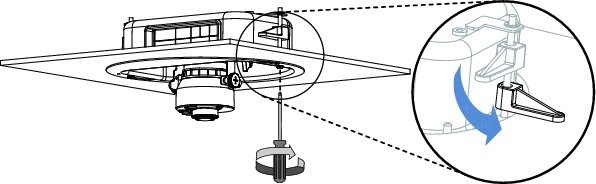

Footstep five Utilise a Phillips-head screwdriver to turn the anchor screws clockwise and spin the anchor clips outward into the locking position and to secure the anchor clips.
The anchor clips twist over the ceiling tile. Turn the anchor clip screws until the camera housing is snug against the ceiling tile. Do not over tighten the screws.
Step 6 Connect a shielded twisted pair (STP) Category 5 or higher network cable to the LAN port on the back of the camera through the cutout in the camera housing. Connect the other end of the network cable to a 10/100/BaseT router or switch.
If your network provides PoE, the IP camera powers on.
Step seven (Optional) Connect the post-obit cables to the GPIO terminal block on the IP camera through the cutout in the camera housing:
•External ability cable to the GPIO final block if PoE is not available.
•(Optional) I/O cables for external input or out put devices, such equally sensors or alarms, to the GPIO terminal block
The GPIO terminal block pin locations and descriptions are every bit follows:
| | | |
| 1 | 12 VDC- | |
| ii | 12 VDC+ | |
| 3 | 24 VAC | |
| 4 | 24 VAC | |
| 5 | DI- | |
| 6 | DI+ | |
| 7 | DO- | |
| 8 | DO+ |
Step eight Replace the ceiling tile with the photographic camera installed.
Step 9 (Optional) Utilize a mini cablevision with BNC connector to temporarily attach an NTSC or PAL compliant analog video display device to the analog video out port on the IP photographic camera.
You may need to temporarily remove and side by side ceiling tile to admission the analog video out port.
Note The mini cable with BNC adapter is included in the audio/video cables accessory kit, which you can purchase from Cisco (Cisco part number CIVS-AVCABLE).
Analog video is enabled by default to let you to adjust the camera field of view during installation. However, it is not supported every bit a normal camera feed and is automatically disabled when any of the post-obit camera settings are made:
•The chief video stream frame rate must be set higher than 15 fps.
•The secondary video stream must is enabled.
Note We recommend that you lot disable analog video after installation. To disable analog video, see the Cisco Video Surveillance 6000 Series IP Camera Configuration Guide.
Stride x Remove the black cover.

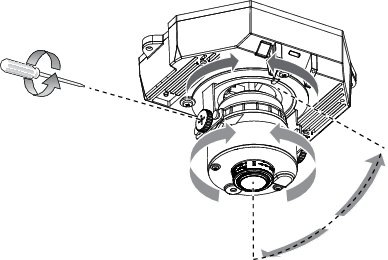

Pace 11 While viewing video from the IP camera, perform the following steps to accommodate the iii-axis field of view:
a. Grip the 2 tilt adjustment screws and pan the IP camera left or right.
b. Loosen the two thumb screws, tilt the IP camera, then tighten the thumb screws.
c. Rotate the IP camera to suit the image horizontal orientation.
Pace 12 Install the black cover. Make certain to arrange the it within the dome and trim ring assembly so that information technology does not cake the lens from capturing video.
Step 13 Attach the security strap from the dome and trim ring assembly to the camera housing using the included screw.
Footstep fourteen Adhere the dome and trim ring assembly past positioning its pegs in the slots of the camera housing and twisting clockwise.
What to practice next
Complete the following procedures:
•After you install the IP camera, follow the instructions in the "Performing the Initial Setup of the IP Photographic camera" section to access the IP camera through your network.
•Afterwards completing the initial setup, employ the IP photographic camera user interface to adjust the focal length and zoom factor. For more information, meet the "Adjusting the IP Camera Focus and Zoom" section.
Mounting the IP photographic camera with a Vandal Resistant Enclosure
To mount the 6020 IP camera using a vandal resistant (VR) enclosure, consummate the following steps:
Procedure
Step 1 Attach the included alignment sticker to the ceiling or wall.
Step 2 Using the circumvolve marks on the sticker, drill at to the lowest degree 2 pilot holes symmetrically on each side into the ceiling or wall. And so hammer the included plastic anchors into the holes.
Stride 3 Do ane of the following:
•To feed cables through a ceiling or wall, cut out a section of the ceiling or wall that corresponds to the triangular cutout on the alignment sticker.
•To feed cables through the side of the conduit base, use a screwdriver to remove the cutout on the side of the conduit base.
Footstep iv Secure the conduit base to the ceiling or wall with ii included screws.
Step v Secure the IP photographic camera to the conduit base of operations with two included screws.
Step half-dozen Feed a shielded twisted pair (STP) Category 5 or higher network cable through the conduit base and connect to the LAN port on the back of the camera. Connect the other terminate of the network cable to a 10/100/BaseT router or switch.
If your network provides PoE, the IP camera powers on.
Step seven (Optional) Feed the following cables through the conduit base and connect to the GPIO terminal cake on the IP photographic camera:
•External power cablevision to the GPIO last block if PoE is not available.
•(Optional) I/O cables for external input or out put devices, such every bit sensors or alarms, to the GPIO terminal block
The pivot locations and descriptions are as follows:
| | | |
| i | 12 VDC- | |
| two | 12 VDC+ | |
| 3 | 24 VAC | |
| 4 | 24 VAC | |
| 5 | DI- | |
| 6 | DI+ | |
| 7 | Practise- | |
| 8 | Practise+ |
Footstep viii (Optional) Utilise a mini cable with BNC connector to temporarily adhere an NTSC or PAL compliant analog video display device to the analog video out port on the IP photographic camera.
Note The mini cablevision with BNC adapter is included in the audio/video cables accessory kit, which you lot can purchase from Cisco (Cisco part number CIVS-AVCABLE).
Analog video is enabled by default to allow yous to adjust the camera field of view during installation. However, it is not supported as a normal camera feed and is automatically disabled when whatever of the following camera settings are fabricated:
•The main video stream frame rate must exist set higher than fifteen fps.
•The secondary video stream must is enabled.
Note We recommend that you disable analog video afterward installation. To disable analog video, see the Cisco Video Surveillance 6000 Series IP Camera Configuration Guide.
Step 9 Remove the black cover.
Step 10 While viewing video from the IP camera, perform the following steps to arrange the 3-axis field of view:
a. Grip the two tilt aligning screws and pan the IP camera left or right.
b. Loosen the two pollex screws, tilt the IP photographic camera, then tighten the pollex screws.
c. Rotate the IP camera to adjust the epitome horizontal orientation.
Step 11 After yous accept adapted the field of view, focal length, and zoom factor, install the black encompass. Brand sure to suit the it so that it does not block the lens from capturing video.
Step 12 Attach the dome embrace to the conduit base by adjustment it with the mounting holes.
Footstep thirteen Use the included wrench and tighten the four dome cover screws to secure the dome comprehend to the camera. Make sure all parts of the camera are securely installed.
What to do side by side
Complete the following procedures:
•After you install the IP camera, follow the instructions in the "Performing the Initial Setup of the IP Camera" department to access the IP camera through your network.
•After completing the initial setup, apply the IP camera user interface to arrange the focal length and zoom gene. For more information, come across the "Adjusting the IP Camera Focus and Zoom" section.
